GlowStep Revolution



GlowStep Revolution IU6.1The GlowStep Revolution is the first and only step system designed for all RV towables that is versatile and flexible to adapt to any type of terrain.

The step entry system is revolutionary for several reasons. Featuring 7 inches of precision elevation adjustment, the GlowStep Revolution has 3 positions of upper adjustment between the RV entry and top step, plus an additional 5 positions of lower adjustment with the All Terrain Landing Gear adjustable feet. Connecting firmly to ground level regardless of terrain, the GlowStep Revolution achieves optimum configuration in any instance. The easy bolt-on installation fits into the factory step compartment, replacing factory steps.

By connecting the RV to the ground (Earth to RV) the unstable and unsafe diving board feeling associated with factory steps is completely eliminated. With a locking mechanism and quick release lever, the step system for towables easily lowers and raises. In most cases the steps provide a significant improvement in ground clearance while traveling compared to a factory trailer step.

Just like a staircase found in your home, the GlowStep Revolution entry step system is extraordinarily sturdy with a level of stability that is simply unmatched. The self illuminating steps also glow in the dark for up to 10 hours with no batteries needed – just five minutes of light exposure. Made from 100% rust-free aircraft grade aluminum, the trailer steps have SureGrip™ built-in tread that creates a no-slip surface. The step's adjustable features are like planting roots each time you deploy the steps, giving you that feeling of security everywhere your RV takes you. With GlowStep Revolution, you know your family can safely enter your trailer or fifth wheel day or night, rain or shine and worry-free. Best of all, the steps are firmly planted so your unit no longer shakes back and forth with every entry and exit of pets or people.

Torklift International uses a specially engineered hinge assembly unlike any other in the industry. The unique bushing bearing design is used on each side of every hinge point on the steps, preventing the step hinges from coming loose over time. To maximize a lifetime of smooth action and ease of use, the RV steps are assembled carefully by hand and adjusted to precise torque. The bushings act as a bearing surface that can handle significant tension without over-stiffening the step configuration, a common problem found on rusting factory steps. Due to these features, Torklift's GlowStep line of RV steps guarantee longevity, durability and quality.

Unlike other trailer entry steps, the GlowStep Revolution is truly a complete step system. The system is tailored to you with the options of adding the GlowGuide Handrail, SafeStep pet barriers and DirtDestroyer shoe cleaning attachment. Available ranging from two to six steps, steps can easily be added and removed so you can take the GlowStep Revolution step entry system with you when you trade in for your next RV. With applications to fit industry standard measurements of 27.5" of 25.5" width step entry openings, use the GlowStep Revolution Spacer Kit or Vertical Stud Adapter bracket for installation on any trailer or fifth wheel. GlowStep Revolution comes backed by our Legendary Lifetime Warranty and is proudly made in the USA.


See what Dealers are saying

GlowStep Revolution In Action

GlowStep Revolution Videos

gsr installsep
GlowStep Revolution Installation
RVers give their candid opinion of the new GlowStep Revolution
RVers give their candid opinion of the new GlowStep Revolution
howtouse
How to use Torklift GlowStep Revolution trailer steps
engineering anim
Computer animated cut away of mechanical operation

GlowStep Revolution Features



  • Only RV step system with 7 inches of vertical precision elevation adjustment
  • Unparalleled stability eliminating the unsafe diving board effect
  • Direct bolt-on installation easily replaces your factory step system
  • Earth to RV: Brings step to ground level (No more unsafe booster step)
  • Landing gear quickly levels on uneven terrain
  • Ground supported connection to RV - No more shaking as people or pets enter and exit
  • 7.5-inch step riser height to accommodate those with limited mobility
  • Step system accessories: Handrail, pet safety barriers and shoe cleaning attachment
  • Made from 100% lightweight aircraft grade aluminum and stainless steel (rust free)
  • Designed specifically for all RV towables
  • Bushing bearing bolted for maximum stability and longevity - also provides smooth operation when deploying or retracting steps to prevent binding and grinding common with factory steps
  • Locking mechanism secures steps for safe travel while improving ground clearance
  • SureGrip™ step tread eliminates jagged holes commonly found on factory steps
  • Self illuminating steps glow in the dark for up to ten hours with only five minutes of light exposure - no batteries
  • Safely enter and exit your RV after dark
  • Sold in applications for 2-6 steps
  • Legendary Lifetime Warranty
  • Legacy step system: With the ability to add or remove steps, take the GlowStep Revolution with you when you trade in for your next RV
  • Proudly made in the USA

*Patented



 Factory Steps
GlowStep Revolution vs. Factory Steps
 All Terrain Landing Gear reaches the ground (Earth to RV) -- No more diving board
Up to 375 lbs. weight capacity*
Ability to add/remove steps (2-6 steps)
System works with handrail that reaches the ground (Earth to RV)
System works with pet safety product -- no more hurt paws

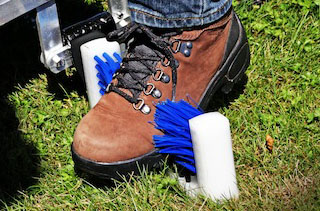

System works with shoe cleaning attachment -- leave the dirt outside
 All Terrain Landing Gear adjusts and levels for uneven terrain
 Significantly improves ground clearance when stored
*GlowGuide Required

Find Your Part Number

gsr dimensionsv2

gsr dimensions ground clearance

GlowStep Revolution Spacer Kit (Part Number A8020)

Apply the GlowStep Revolution Spacer Kit to achieve installation of the GlowStep Revolution step system in applications where the width between factory mounting brackets on your towable is between or larger than the standard factory measurements of 27.5” or 25.5”. The kit includes four ¼-inch thick steel spacer plates and longer hardware to ensure seamless installation, adjusting the factory bracket width to accurately fit the step mounting location.



GlowStep Revolution Vertical Stud Adapter Bracket (Part Number A8022)

The GlowStep Revolution Vertical Stud Adapter Bracket is made specifically for trailers without vertical brackets that extend out perpendicular from the trailers frame or "predrilled step frame outrigger mounting brackets" to install the GlowStep Revolution. The Vertical Stud Adapter Bracket is attached underneath your step opening allowing the GlowStep Revolution to bolt directly to the bracket.



GlowStep Revolution with 8" x 22.25" Steps
Description / Part NumberWidth between factory mounting brackets (A)Height from top of step opening to ground (B)Height from top of step opening to bottom of stored steps (C)Weight CapacityNotes

Add-A-Step (for A8002-A8005)
MFG Part Number: A8001

27.5" N/A N/A N/A †, ††
2 Step
MFG Part Number: A8002
27.5" 18.5" to 24" 11.5" to 12.5" 375lbs
†††
3 Step
MFG Part Number: A8003
27.5" 25.5" to 32" 13.75" to 14.75" 375lbs
†††
4 Step
MFG Part Number: A8004
27.5" 32.5" to 40" 16" to 17" 375lbs
 †††
5 Step
MFG Part Number: A8005
27.5" 39.5" to 48" 18.25" to 19.25" 325lbs
†††
6 Step
MFG Part Number: A8006
27.5" 46.5" to 56" 20.5" to 21.5" 325lbs
†††, *
Add-A-Step (for A8102-A8105)
MFG Part Number: A8101
25.5" N/A N/A N/A †, ††
2 Step
MFG Part Number: A8102
25.5" 18.5" to 24" 11.5" to 12.5" 375lbs †††
3 Step
MFG Part Number: A8103
25.5" 25.5" to 32" 13.75" to 14.75" 375lbs †††
4 Step
MFG Part Number: A8104
25.5" 32.5" to 40" 16" to 17" 375lbs †††
5 Step
MFG Part Number: A8105
25.5" 39.5" to 48" 18.25" to 19.25" 325lbs †††
6 Step
MFG Part Number: A8106
25.5" 46.5" to 56" 20.5" to 21.5" 325lbs †††, *

GlowStep Revolution
Spacer Kit
MFG Part Number: A8020

N/A N/A N/A N/A



GlowStep Revolution Vertical Stud Adapter Bracket
MFG Part Number: A8022

N/A N/A N/A N/A

Do not use Add-A-Step Kit to convert a six-step to a seven-step.  Contact Torklift International for seven step options.

†† All Terrain Landing Gear not included.

††† With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 350lbs / 5-6 MAX CAP 300lbs.

* The GlowStep Revolution is available from two to six steps. The six step is specifically available for side-entry truck campers that have a larger opening to the ground. Most travel trailers, toy haulers and 5th wheels will only require two to five step applications.

GlowStep Revolution Application Guide

Don’t see your application in the chart below? We are adding new fits weekly so contact us to find your fitment for your GlowStep Revolution

Make:
Model:
Year:

GlowStep Revolution Accessories

gsr diagram



GlowStep Revolution Series Accessories Guide

GlowStep RevolutionAll Terrain Landing Gear (Included with Revolution)GlowGuideSafeStepDirtDestroyerBasement Camper StepGlowGuide Locks
All A8000 Click Here Click Here Click Here Click Here Click Here


Resources

Dealers, click here to view Torklift's Products Displays.

Customers Who Bought The GlowStep Revolution Also Bought

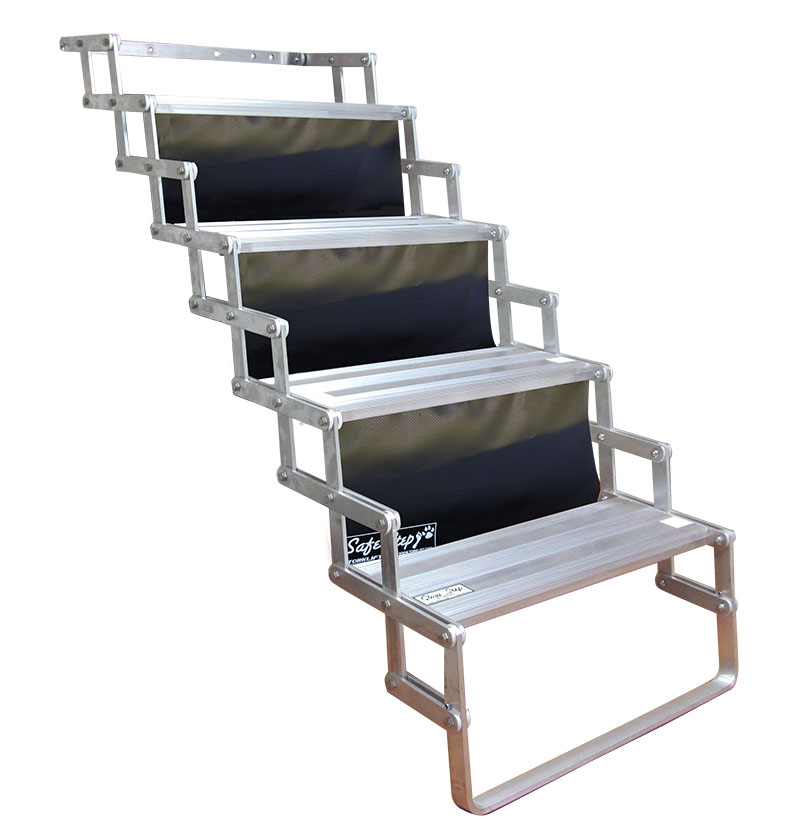

1. SafeStep prevents injury
