8 inch tread depth step now available









TORKLIFT GLOWSTEP PART REFERENCE GUIDE

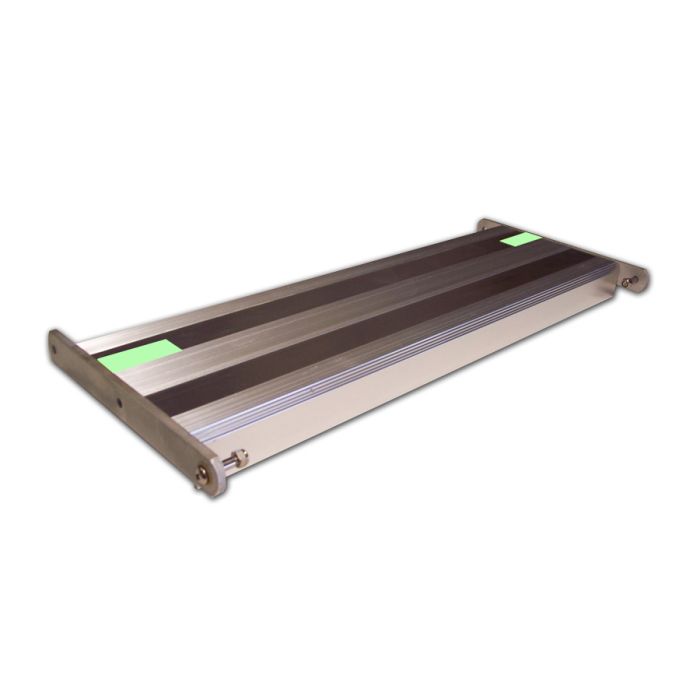

Add-a-Step
Part# A7501

click here for distributor numbers

GlowStep 2 Step
Part# A7502

click here for distributor numbers
Max Weight: 350lbs*

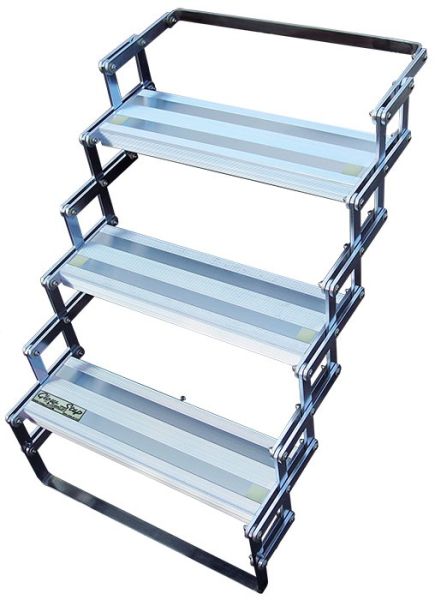

GlowStep 3 Step
Part# A7503

click here for distributor numbers
Max Weight: 350lbs*
GlowStep 4 Step
Part# A7504

click here for distributor numbers
Max Weight: 350lbs*
GlowStep 5 Step
Part# A7505

click here for distributor numbers
Max Weight: 300lbs*
GlowStep 6 Step
Part# A7506

click here for distributor numbers
Max Weight: 300lbs*
8" GlowStep 2 Step
Part# A7802

click here for distributor numbers
Max Weight: 375lbs**
8" GlowStep 3 Step
Part# A7803

click here for distributor numbers
Max Weight: 375lbs**
8" GlowStep 4 Step
Part# A7804

click here for distributor numbers
Max Weight: 375lbs**
8" GlowStep 5 Step
Part# A7805

click here for distributor numbers
Max Weight: 325lbs**
8" GlowStep 6 Step
Part# A7806

click here for distributor numbers
Max Weight: 325lbs**
*With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 325lbs / 5-6 MAX CAP 275lbs
**With use of Torklift GlowGuide. Otherwise 2-4step MAX CAP 350lbs / 5-6 MAX CAP 300lbs

Each 2 - 6 Glowstep Kit includes 1 Universal Surface Mounting Bracket





Glowstep: Universal Surface Mounting Bracket
shipping in all new GlowStep kits.     Click Here for Part Numbers


Universal Bracket Dimensions: 20" width - 1" height - 3/8" thickness




Dealers, click here to view Torklift's Products Displays.


Proper stainless steel care information

    Legendary Lifetime Warranty

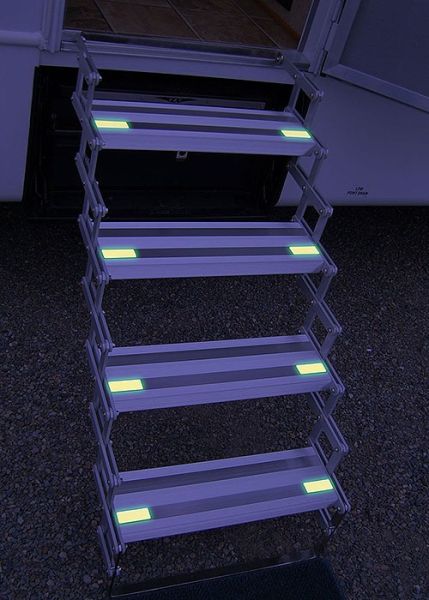

    Glows in the Dark for 10 hours with only 5 minutes of light exposure
    Self Illuminating Steps - No Batteries

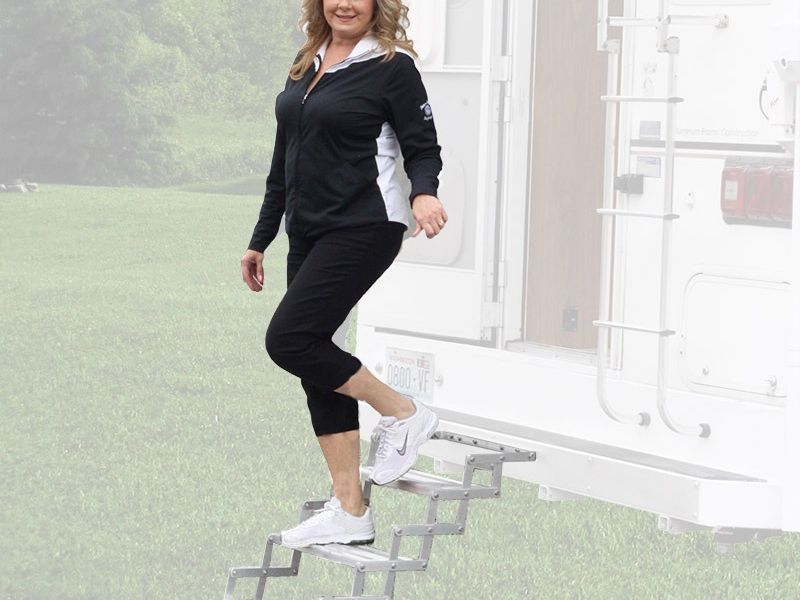

    Safely enter and exit your RV after dark
    SureGrip™ step tread - no grip tape
    Stores in position
    Lockable
    Exclusive: adjusts to basement model campers
    100% Aluminum and Stainless Steel
    Stainless bolted hinges allow for easy step addition or removal (Add-a-Step Kit Part # A7501)

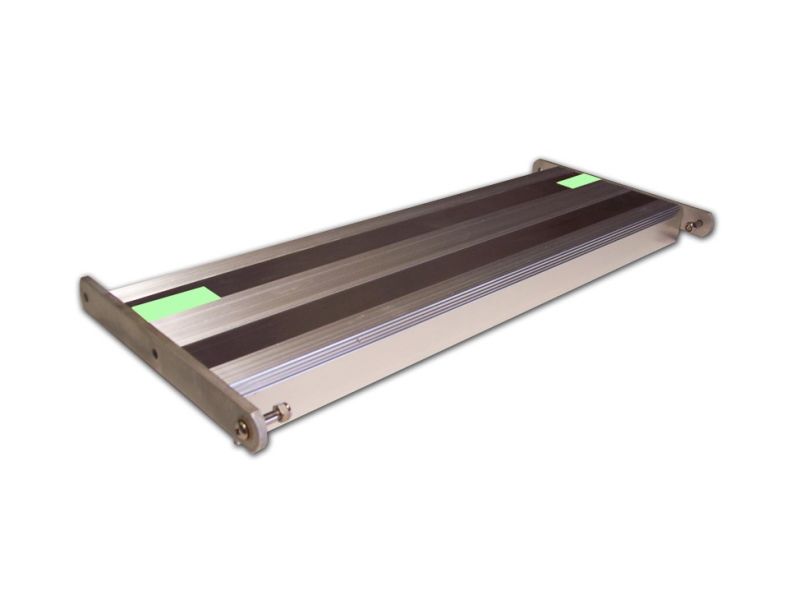

    6 inch step

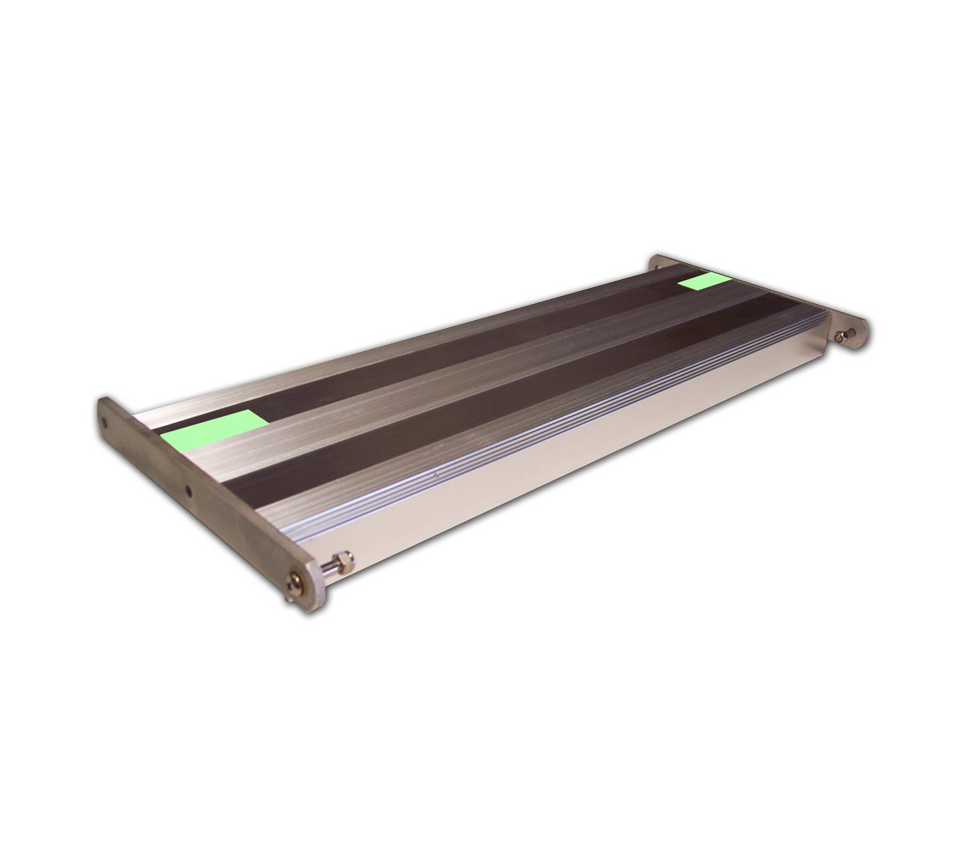

    A7501 - Add-A-Step
    Step Dimensions 6" x 20"
    Weight: 7lbs.

    A7502 - Two Step
    Mounting Bracket Height - 19.5"
    Step Dimensions 6" x 20"
    Collapsed Height: 6" - 7"
    Weight: 17lbs.

    A7503
    - Three Step
    Mounting Bracket Height - 27"
    Step Dimensions 6" x 20"
    Collapsed Height: 8" - 9"

    Weight: 21lbs.

    A7504
    - Four Step
    Mounting Bracket Height - 34.5"
    Step Dimensions 6" x 20"
    Collapsed Height: 10" - 11"

    Weight: 24lbs.

    A7505
    - Five Step
    Mounting Bracket Height - 42"
    Step Dimensions 6" x 20"
    Collapsed Height: 12" - 13"

    Weight: 29lbs.

    A7506
    - Six Step
    Mounting Bracket Height - 49.5"
    Step Dimensions 6" x 20"
    Collapsed Height: 14" - 15"

    Weight: 33lbs.
    8 inch step


    A7801 - Add-A-Step
    Step Dimensions 8" x 20"
    Weight: 7lbs.

    A7802 - Two Step
    Mounting Bracket Height - 19.5"
    Step Dimensions 8" x 20"
    Collapsed Height: 6" - 7"
    Weight: 17lbs.

    A7803
    - Three Step
    Mounting Bracket Height - 27"
    Step Dimensions 8" x 20"
    Collapsed Height: 8" - 9"

    Weight: 21lbs.

    A7804
    - Four Step
    Mounting Bracket Height - 34.5"
    Step Dimensions 8" x 20"
    Collapsed Height: 10" - 11"

    Weight: 24lbs.

    A7805
    - Five Step
    Mounting Bracket Height - 42"
    Step Dimensions 8" x 20"
    Collapsed Height: 12" - 13"

    Weight: 29lbs.

    A7806
    - Six Step
    Mounting Bracket Height - 49.5"
    Step Dimensions 8" x 20"
    Collapsed Height: 14" - 15"

    Weight: 33lbs.
