Extended Towing

SuperTruss & Cannon Extensions

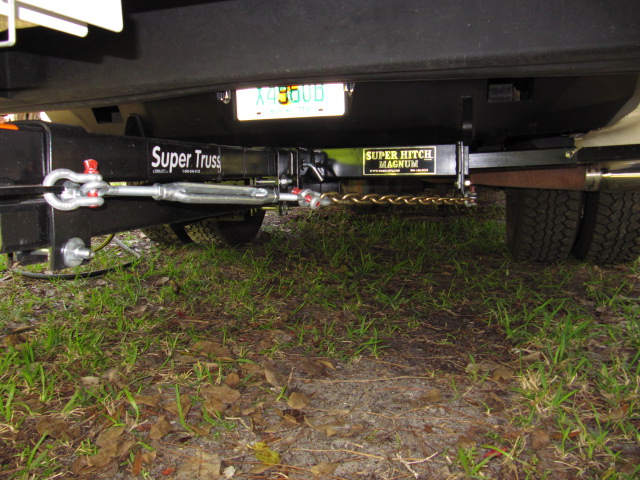

Super Hitch and Supertruss Extension combo

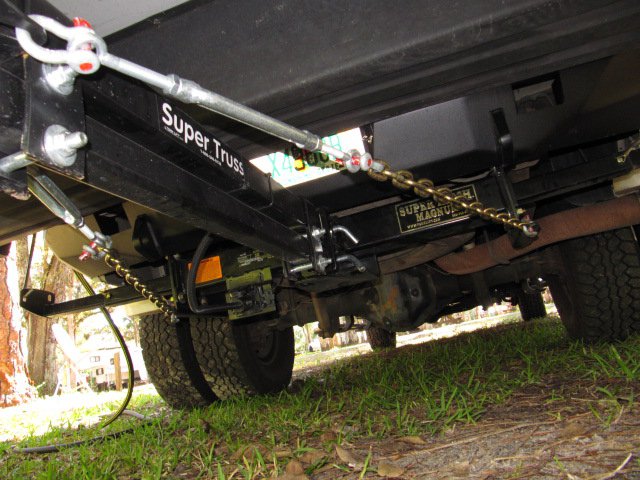

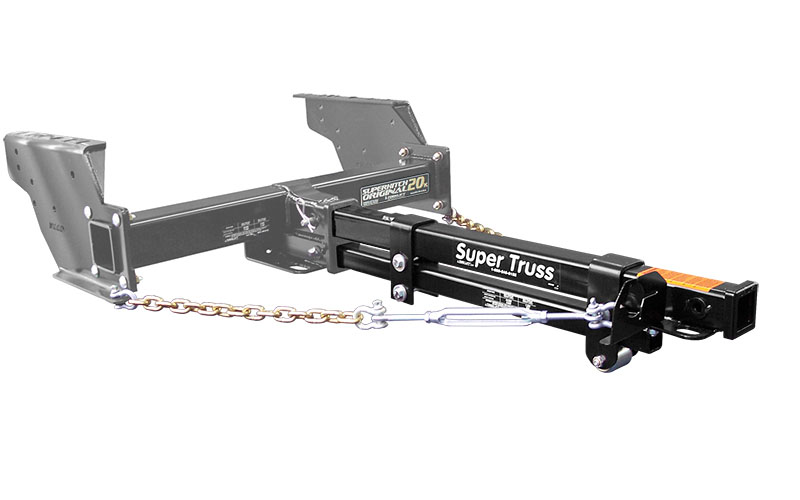

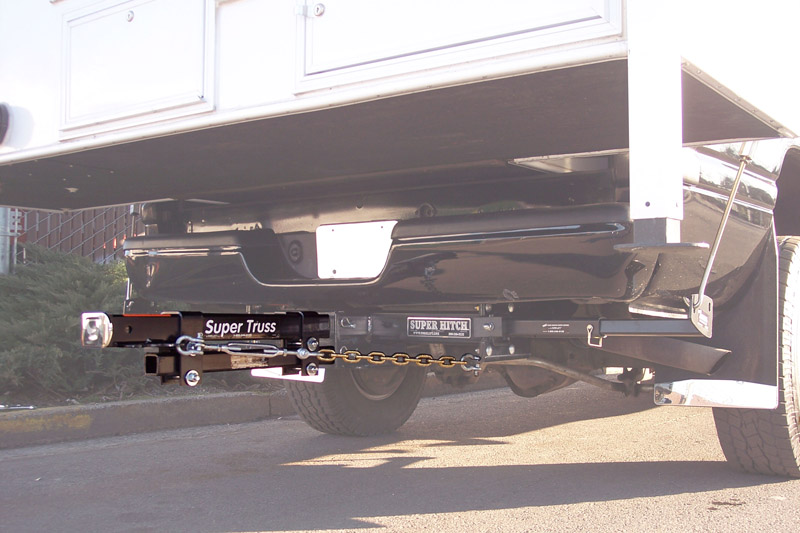

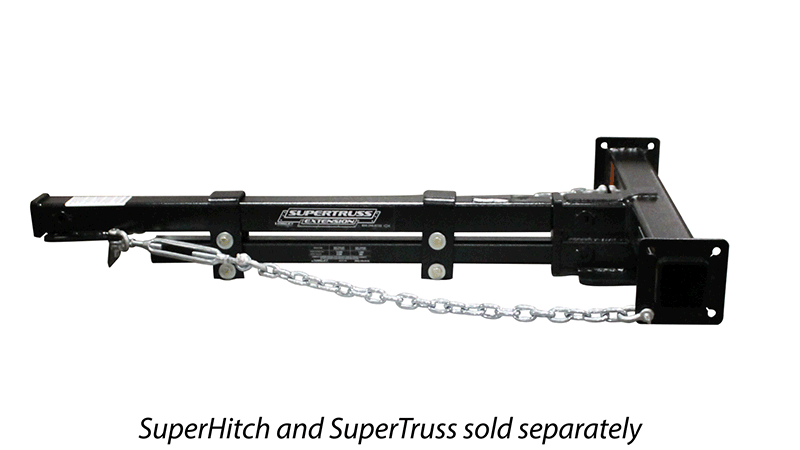

SuperTruss Extension (Only compatible with SuperHitch Series)

The SuperTruss Extension is a dual extension that works exclusively with the Torklift SuperHitch series to provide the top extended towing capacities available. It's rated to safely tow up to 14,000 lbs and 1,400 lbs tongue weight on a 21" extension and 12,000 lbs and 1,200 lbs tongue weight on a 48" extension.

The SuperTruss is backed by our Legendary Lifetime Warranty and is proudly made in the USA. The SuperTruss Extension is available in eight lengths from 21" to 60".

If you are not sure the length of the SuperTruss you need, click here to use our measurement guide

Uses patented lateral-support safety chains

Available in three lengths from 36 to 48

Cannon Extension (Only compatible with factory hitches with 3" receiver opening)

The Cannon is the only trailer receiver hitch extension manufactured specifically for Ford trucks with 3-inch receivers and is perfect for a truck camper or anything else that creates overhang or the need for an extension.

The Cannon utilizes the SuperTruss patented lateral support safety chains and an all new built-in set bolt system that prevents extension and receiver movement while towing.

The Cannon extension achieves high tow rating thanks to its internal reinforcement and is rated to tow up to 11,000* lbs pull and 1,100* lbs tongue weight. Lengths for this trailer receiver extension are 21", 24", 28", 32", 42", 48", and 60".

If you are not sure the length of the Cannon extension you need, please see the chart below to use our measuring guide

Find the Right Extension for Your Setup

The Torklift Advantage

	Torklift	Other Hitches
SuperTruss Extension Advantages
Hitch Capacity With 48" Extension And Weight Distribution	1,200 Lbs Tongue Weight 12,000 Lbs Pull Weight	6,000 Lbs Pull Weight
Hitch Capacity With 48" Extension Without Weight Distribution	600 Lbs Tongue Weight 6,000 Lbs Pull Weight	4,000 Lbs Pull Weight
Lateral Support Safety Chain System And Plug Bracket Included In Cost		Lateral Support Safety Chains Not Available, Plug Brackets Extra
SUPER HITCH® Advantages
No-Drill Applications Since 1999
Hitch Utilizes Industry Standard 2" X 2" Ballmounts Without Adapter		Uses 2.5" X 2.5" receiver
Hitch Utilizes Hardened / Reinforced Hitch Pin Holes

SuperTruss Features

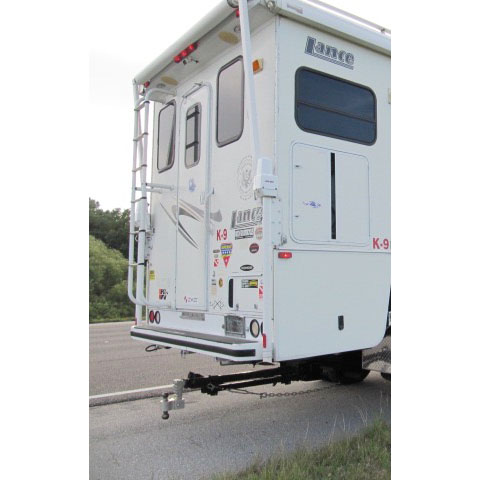

Designed for campers up to 12 feet
Available in eight lengths from 21" to 60"
Hardened reinforced hitch pin locations
Highest capacity in the industry (12k lbs @ 48")†
Uses patented, lateral-support safety chains
Optional SkidWheel available
Legendary Lifetime Warranty
Proudly made in the USA

Patented: US 6,173,984; 6,443,474

Footnotes:

† 12,000 lb. pulling capacity, 1,200 tongue wt. achieved only when used with weight distribution type system. See Dealer for details, Weight carrying capacity on 48" extension, 6,000 lb. pull, 600 lb. tongue wt. Consult your vehicle owners manual for specific towing capacity. Your truck and trailer weight cannot exceed your vehicle manufacturers towing, cargo, or GCVWR.
