Installation Disclaimer: This blog is intended as a general reference only. It may not include every step, tool, torque specification, or vehicle-specific detail needed for your installation. Always refer to the official installation instructions included with your product for the complete procedure, required tools, torque values, safety information, and fitment details.

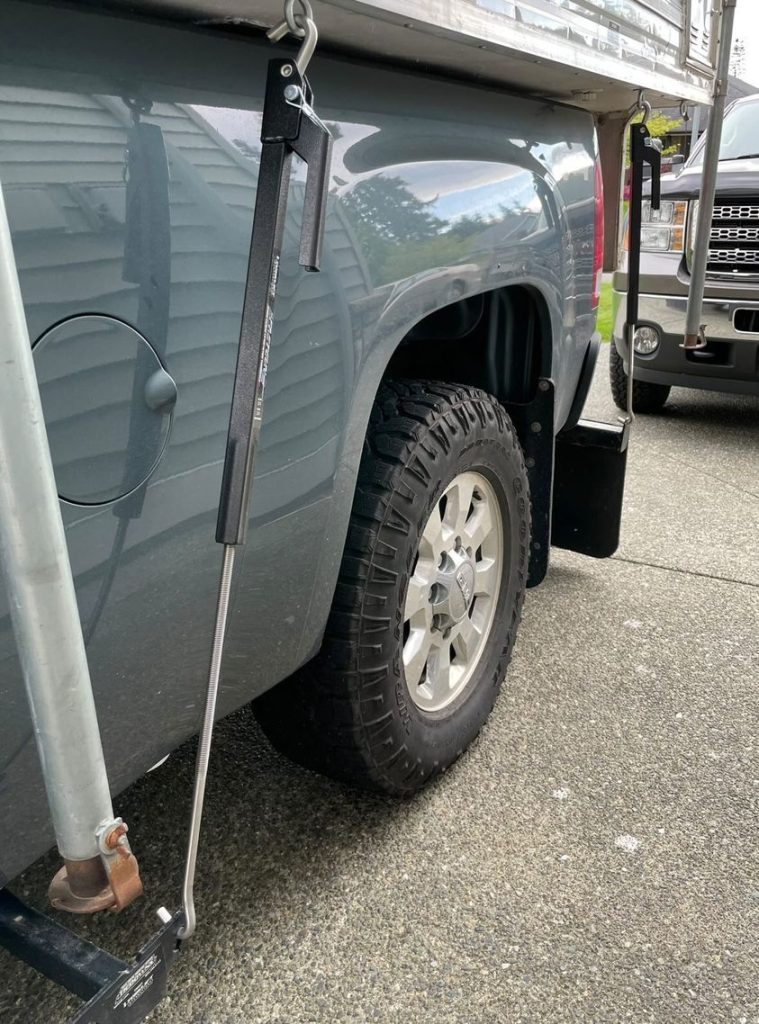

When it comes to securing your truck camper, the Torklift FastGun turnbuckle stands out as a premium solution that combines ease of use with robust performance. This quick lever action, spring-loaded turnbuckle is 100% lockable, 100% tool-free, and backed by a legendary lifetime warranty.
Why Choose FastGun Turnbuckles?
The FastGun turnbuckle system eliminates the frustration of traditional turnbuckles that require wrenches and constant adjustment. With its innovative lever action design, you can secure your camper in seconds without reaching for a single tool.
Step-by-Step Installation Process
Installing your FastGun turnbuckles is straightforward when you follow these simple steps:
Step 1: Prepare the FastGun
Close the handle of your FastGun before beginning the installation process.
Step 2: Position the Upper Mount
Hang the FastGun by the upper anchor mount on your camper.
Step 3: Align the Lower Hook
Set your lower hook bolt so it's positioned right above the hole you want to use on your tie-down plate.
Step 4: Install the Lower Hook
Remove the FastGun from its hanging position and insert the lower hook bolt first.
Step 5: Secure the Upper Hook
Open your handle, insert your top hook, and lock it down. That's it—your FastGun is installed.
How to Adjust Tension Properly
Proper tension adjustment ensures your camper stays secure during travel. Every FastGun comes with an O-ring located at the bottom of the body that plays a crucial role in tension measurement.
Tension Adjustment Steps:
- Place the FastGun on your truck very loose with the handle open
- Push the O-ring to the bottom of the body all the way so it's very snug
- Lock down your handle and observe the separation
- Look for a 1/4 inch gap—this represents 300 pounds of tension
Making Quick Adjustments
Need to fine-tune your FastGun after initial installation? The adjustment process is remarkably simple:
- Unlock your FastGun
- Remove the bottom hook
- Give it a couple turns
- Reinstall it in your insert
- Lock it down
Enhanced Security with FastGun Locks
For added peace of mind, Torklift offers FastGun locks that integrate seamlessly with your turnbuckle system. These locks are sold in sets of four and are all keyed alike for convenience.
Installing a FastGun lock couldn't be easier—simply lock it and you're done. This additional security feature helps protect your investment when your camper is parked or stored.
The Tool-Free Advantage
The FastGun's tool-free design means you'll never be stuck searching for the right wrench or struggling with stubborn threads. Whether you're setting up camp or preparing for the road, the lever action mechanism provides consistent, reliable performance every time.
Frequently Asked Questions
Q: Do I need any tools to install FastGun turnbuckles?
No. The FastGun turnbuckle is 100% tool-free, making installation and adjustment quick and easy.
Q: How much tension does the 1/4 inch separation represent?
The 1/4 inch separation between the O-ring and the body represents 300 pounds of tension. 300 pounds of tension on your spring-loaded turnbuckle is required for safe camper hauling and protects the integrity of your camper anchor points.
Q: Where is the O-ring located on the FastGun?
The O-ring is located at the bottom of the body.
**Q: How many FastGun turnbuckles come in a kit? **
FastGun turnbuckles come in a set of 2 per kit. You will need a total of 4 turnbuckles to secure your truck camper to the Torklift tie downs at all 4 anchor points.
Q: Are FastGun locks sold individually or in sets?
FastGun locks are sold in sets of four, and they're all keyed alike.
Q: What warranty covers the FastGun turnbuckles?
FastGun turnbuckles are covered by Torklift's legendary lifetime warranty.
Q: How do I adjust the FastGun if it needs more or less tension?
Unlock your FastGun, remove the bottom hook, give it a couple turns (clockwise to tighten, counterclockwise to loosen), reinstall it in your insert, and lock it down.
Q: Where can I get more information or support?
Visit torklift.com or call for live tech support at 800-246-8132.
