Why Upgrade to the Torklift SuperHitch Hero 15k?
The Torklift SuperHitch part number T1302H transforms your Toyota Tundra's towing capabilities. This heavy-duty receiver hitch delivers a 1,500-pound tongue weight capacity and an impressive 15,000-pound tow capacity, significantly enhancing what your truck can handle.
Built with pride in the USA, the SuperHitch features powder-coated construction for long-lasting durability and comes backed by a lifetime warranty. When you need serious towing power you can count on, this is the upgrade your Tundra deserves.
Preparing for Installation
Before you begin, lower your spare tire to create working space beneath the vehicle. This simple first step gives you the clearance needed to access all the components you'll be working with.
Removing the Factory Hitch
Disconnect Electrical Components
Start by unbolting the 7-pin trailer plug from the factory hitch and relocating it temporarily out of your work area. Next, unbolt the screws along the bottom edge of the rear bumper.
Use a pry tool to carefully unplug the license plate lights. If your Tundra is equipped with bumper sensors, unplug the bumper sensor harness as well.
Remove the Bumper
Remove the plastic rear step bumper pad, then unbolt the bolts that attach the bumper to the rear hitch. With these fasteners removed, you can take the bumper off the vehicle.
Remove the Factory Hitch
Locate the factory hitch bolts on both sides of the hitch. Unbolt both sides, but keep these bolts handy as you'll be reusing them for the SuperHitch installation. Once the bolts are removed, lower the factory hitch from the vehicle.
Installing Your SuperHitch Hero 15k
Mount the Side Plates
Place the side plates into position and align them with the bolt holes on the frame. Using the factory bolts you saved earlier, loosely hang the side plates on the frame. Don't fully tighten them yet.
Install the Cross Tube
Lift the cross tube into place by aligning its mounting holes with the side plates. Place a half-inch bolt and flat washer through each of the holes, then secure each with a washer, lock washer, and nut.
Add the Support Brackets
Install the side plate support brackets by positioning them between the side plates and the truck frame. Put two bolts through the frame and two through the side plate. Secure each with a lock washer and hex nut, then repeat the same process on the other side.
Mount the Center Support Plate
Mount the center bumper support plate on top of the hitch and secure it with the 5/16-inch bolts and flange nuts provided.
Reinstalling the Bumper and Finishing Touches
Reattach the Bumper
Lift the bumper back into place and secure it with 5/16-inch bolts, lock washers, and flange nuts.
Reconnect Electrical Components
Reinstall the bumper pad by reclipping it into the bumper. Position the towing harness plug into place on its mounting bracket and secure it with the supplied quarter-inch hardware. Plug the license plate lights back in.
Final Steps
Now you can torque all of the hardware to proper specifications. Finally, lift the spare tire back into place.

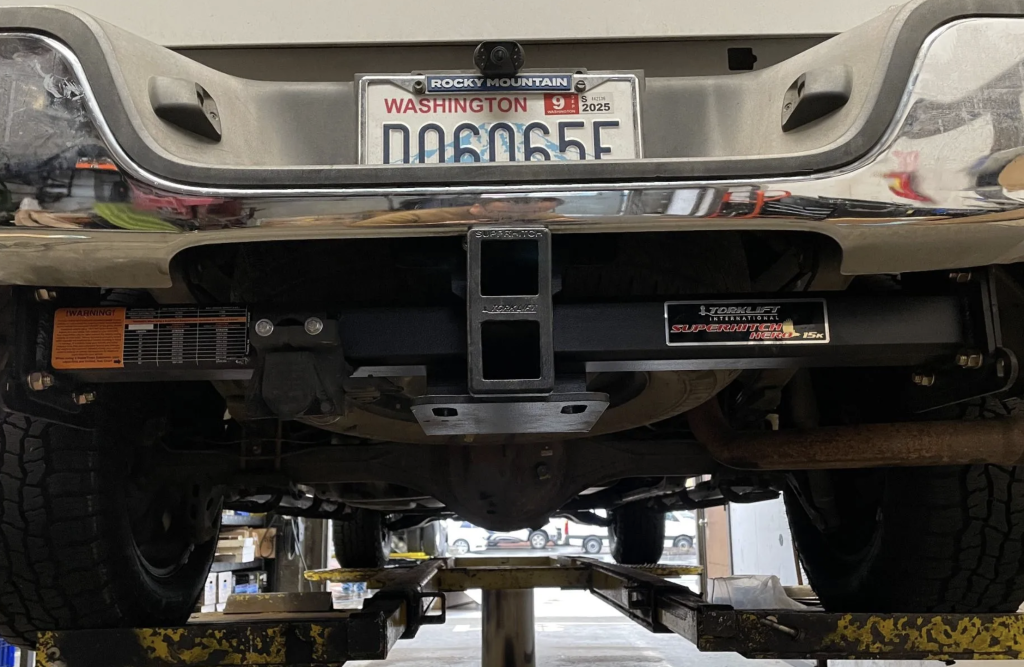

Your SuperHitch installation is now complete, and your Toyota Tundra is ready to handle serious towing jobs with confidence.
Frequently Asked Questions
What is the towing capacity of the Torklift SuperHitch Hero 15k?
The SuperHitch provides a 15,000-pound tow capacity with a 1,500-pound tongue weight rating.
What is the part number for the Toyota Tundra SuperHitch?
Do I need to remove the factory hitch?
Yes, the factory hitch must be completely removed before installing the SuperHitch.
Can I reuse the factory hitch bolts?
Yes, the factory hitch bolts are reused to hang the side plates on the frame.
What kind of warranty does the SuperHitch come with?
The SuperHitch is backed by a lifetime warranty.
Is the SuperHitch powder coated?
Yes, the hitch features powder-coated construction for durability and corrosion resistance.
Do I need to lower the spare tire during installation?
Yes, lowering the spare tire is the first step to provide adequate working space.
What size bolts are used for the bumper installation?
The bumper is secured with 5/16-inch bolts, lock washers, and flange nuts.
