Installation Disclaimer: This blog is intended as a general reference only. It may not include every step, tool, torque specification, or vehicle-specific detail needed for your installation. Always refer to the official installation instructions included with your product for the complete procedure, required tools, torque values, safety information, and fitment details.
When it comes to securing a slide-in camper to your Chevy or GMC 2500/3500 truck, the Torklift C2220 tie-downs offer the strongest mounting option available. These tie downs bolt directly to your truck's frame, providing unmatched stability and peace of mind on the road.
Use Torklift’s fit finder to identify the exact configuration for your year, make, and model.

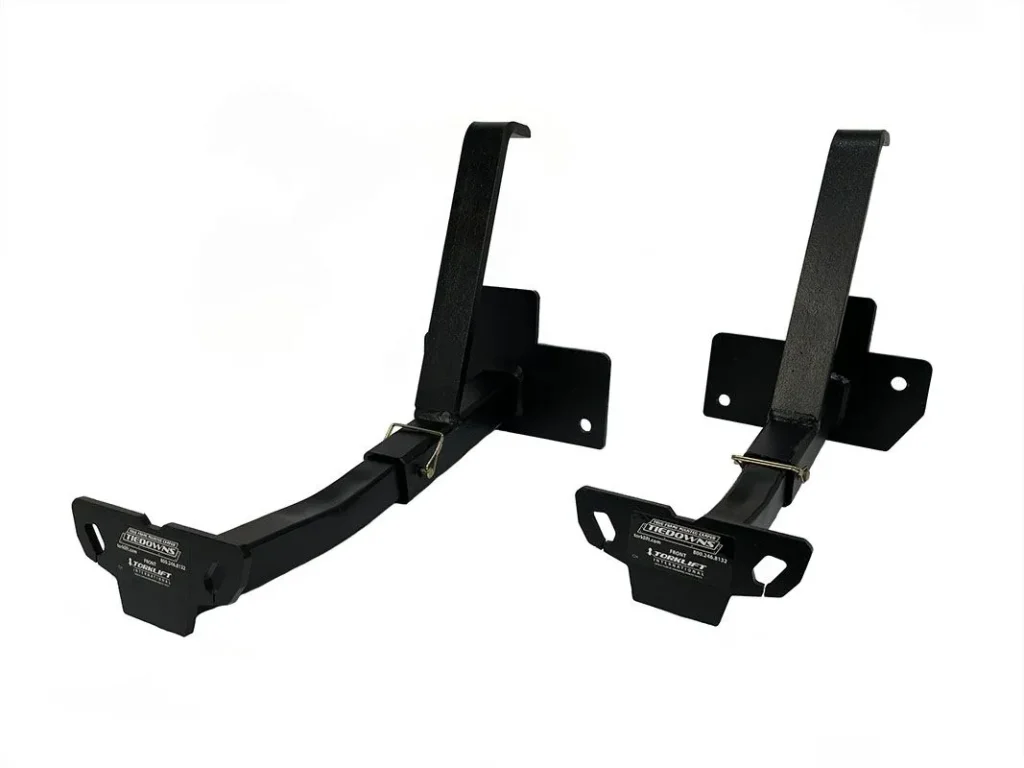

Why Choose Torklift C2220 Tie-Downs
The C2220 tie downs are built to professional standards. Made in the USA with a lifetime warranty, these tie downs are powder-coated in premium Armor Pro Finish and designed to withstand years of use. By mounting directly to the frame, they create the most secure connection possible for your camper.
Installation Overview
Installing the C2220 tie-downs on your Chevy or GMC 2500/3500 requires careful attention to detail. The process involves working with your truck's frame, spring perch, and front bed cross member. You'll start with the driver's side and then repeat the process on the passenger side.
Step-by-Step Installation Process
Preparing the Spring Perch
Begin by inserting the coiled end of the bolt-fisher through the small hole on the underside of the spring perch and out the side. Place a square bolt onto the bolt fisher and string it through.
Working with the Frame Holes
Locate the oval hole between the two mounts and the circular hole just to the front of the cab mount. Insert the coiled end of the bolt fisher first through the oval hole and then out the circular hole.
Attach the half inch bolt, star washer, and plate washer to the coiled end of the fisher. Feed the hardware through the frame and out the oval hole.
Mounting the Tie Down
Locate the driver's side front bed cross member perch and remove the factory bolt. Put your tie-down in place, lining up the top holes and reinstalling the factory bolt.
Attach a washer, lock washer, and nut onto the bolt protruding from the frame. This secures the tie-down to the frame.
Installing the Spring Perch Plate
Grab your spring perch plate and place the side with two holes against the frame and through the square bolt from earlier. Secure the bolt with a washer, lock washer, and nut.
Place a bolt through the spring perch plate and the tie-down, securing it with a washer, lock washer, and nut.
Final Steps
Torque down all the hardware to ensure a secure installation. Repeat the entire process on the passenger side.
Using Your Tie-Downs
When you're ready to use your tie-downs, slide an insert into the receiver and secure it with the provided pin. Your tie-down installation is now complete.
Important Installation Notes
Always refer to the official Torklift instructions when installing these products, as they are updated regularly. This guide serves as an overview reference, but the included instructions contain the most current and complete information for your specific installation.
FAQ
What vehicles are compatible with the Torklift C2220 tie downs?
The C2220 tie downs are designed for Chevy and GMC 2500 and 3500 trucks.
What warranty comes with these tie downs?
Torklift C2220 tie downs come with a lifetime warranty.
Where are these tie downs manufactured?
The C2220 tie downs are made in the USA.
How do the tie downs attach to the truck?
They bolt directly to your truck's frame, creating the strongest mounting option possible for your slide-in camper.
Do I need to remove any factory bolts during installation?
Yes, you need to remove the factory bolt from the driver's side front bed cross member perch, then reinstall it when mounting the tie down.
What finish do these tie downs have?
The tie downs are powder coated with premium Armor Pro Finish for durability and long-lasting protection.
Where can I get help if I have questions during installation?
You can visit the Torklift website or call (800)246-8132 for assistance.
Do I need to install tie-downs on both sides of the truck?
Yes, the installation process should be completed on both the driver's side and passenger side.
