Understanding the Torklift R3503 Tie Down System
The Torklift frame mounted camper tie-downs (part number R3503) represent the strongest mounting option available for securing your truck bed camper. These tie-downs are specifically engineered to work exclusively with the Torklift Super Hitch and cannot be installed without it.

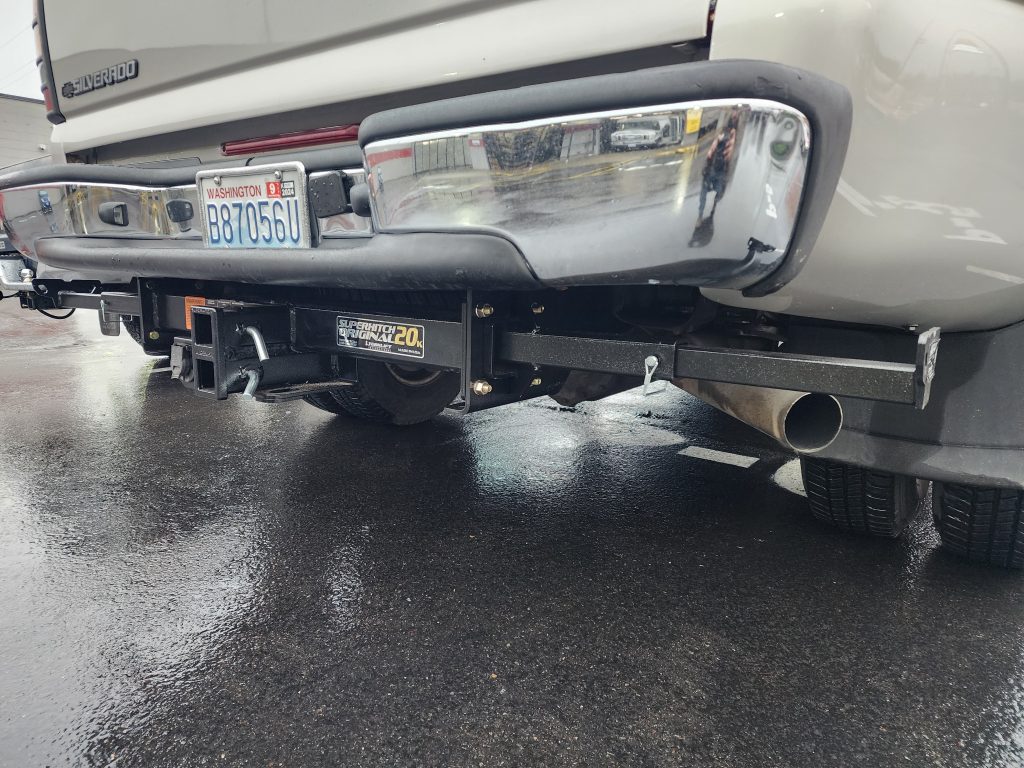

By bolting directly to the Super Hitch, the R3503 tie-downs create an integrated system that maximizes stability and load distribution for your camper setup.
Important Compatibility Requirements
Before beginning your installation, understand that the R3503 tie-downs require the Torklift Super Hitch. This is not an optional component. The tie-downs are designed to mount directly to the Super Hitch cross tube, creating a unified anchoring system.
The installation process can be completed in two ways:
- During initial Super Hitch installation (simultaneous installation)
- After the Super Hitch is already installed on your vehicle
Step-by-Step Installation Process
Step 1: Prepare the Super Hitch Cross Tube
Locate the two forward most nuts and washers on the bolts that attach the hitch's side plates to the cross tube. Remove these nuts and washers completely. This creates the access point needed for the tie-down receiver.
Step 2: Install the Tie Down Receiver
Take the tie-down receiver and slide it into the opening on the cross tube. The receiver should fit securely into position where you removed the hardware in the previous step.
Step 3: Secure the Receiver
Reinstall the nuts and lock washers that you removed in Step 1. Make sure the lock washers are properly positioned to prevent loosening over time.
Step 4: Torque All Hardware
Torque down all the hardware according to specifications. Proper torque is critical for maintaining the structural integrity of your tie-down system.
Step 5: Complete Super Hitch Installation
If you're installing the tie-downs simultaneously with the Super Hitch, follow the Super Hitch instructions to complete that installation process.
Using Your Installed Tie-Downs
Once installation is complete, using your tie-downs is straightforward:
- Slide a tie-down insert into the receiver
- Secure the insert with the provided pin
Your camper can now be safely anchored to these mounting points for maximum stability during transport and use.
Installation Tips for Success
The installation process is relatively simple, but attention to detail matters. Here are key points to remember:
- Work methodically through each step
- Keep track of all removed hardware
- Ensure lock washers are properly installed
- Verify all connections are secure before use
- Always torque hardware to proper specifications
Why Choose Frame-Mounted Tie-Downs
Frame-mounted tie-downs offer superior strength compared to other mounting methods. By integrating with the Super Hitch system, the R3503 tie-downs distribute camper loads directly to your vehicle's frame structure. This creates the most robust anchoring solution for truck bed campers.
Frequently Asked Questions
Can I install the R3503 tie-downs without a Torklift Super Hitch?
No. The R3503 tie-downs are specifically designed to be compatible with the Torklift Super Hitch and cannot be installed without it.
Can I install these tie-downs if my Super Hitch is already installed?
Yes. While the installation can be done simultaneously with the Super Hitch, you can also install the tie-downs after your Super Hitch is already in place.
What hardware is included with the tie-downs?
The tie-downs include a pin for securing the insert to the receiver. The mounting utilizes the existing Super Hitch hardware.
How do I use the tie-downs once installed?
Simply slide an insert into the receiver and secure it with the provided pin.
Where can I get help if I have questions during installation?
For questions, visit the Torklift website or call 800-246-8132.
Should I rely solely on this guide for installation?
No. This guide is for visual reference only. Always refer to the official Torklift instructions when installing products, as they are updated regularly with the most current information.
