Installation Disclaimer: This blog is intended as a general reference only. It may not include every step, tool, torque specification, or vehicle-specific detail needed for your installation. Always refer to the official installation instructions included with your product for the complete procedure, required tools, torque values, safety information, and fitment details.
Installing your Torklift SuperTruss extension is a straightforward process when you follow the proper sequence. This guide walks you through each step to ensure your extension is properly installed and ready for towing.
Getting Started: Installing the Receiver Tubes
Begin by inserting the upper receiver tube into the upper slot of your SuperHitch. If you own a SuperHitch Magnum, you'll need to insert the reducer sleeve first before adding the upper receiver tube.
Next, insert the compression tube into the bottom slot. Secure both tubes using the provided pins and clips to ensure they're locked in place.
Attaching the U-Bolts
Place your U-bolts on the upper receiver tube. Position the shim plates on both sides of each U-bolt so they make contact with the lower tube. Secure everything with the provided hardware.
Keep in mind that the exact quantity and placement of U-bolts will vary depending on your extension length. Follow the specifications for your particular model.
Connecting the Chains and Shackles
Using your bow shackles, feed one side through the chain loop and secure it to your SuperHitch side plate. This creates the initial connection point for your safety chain system.

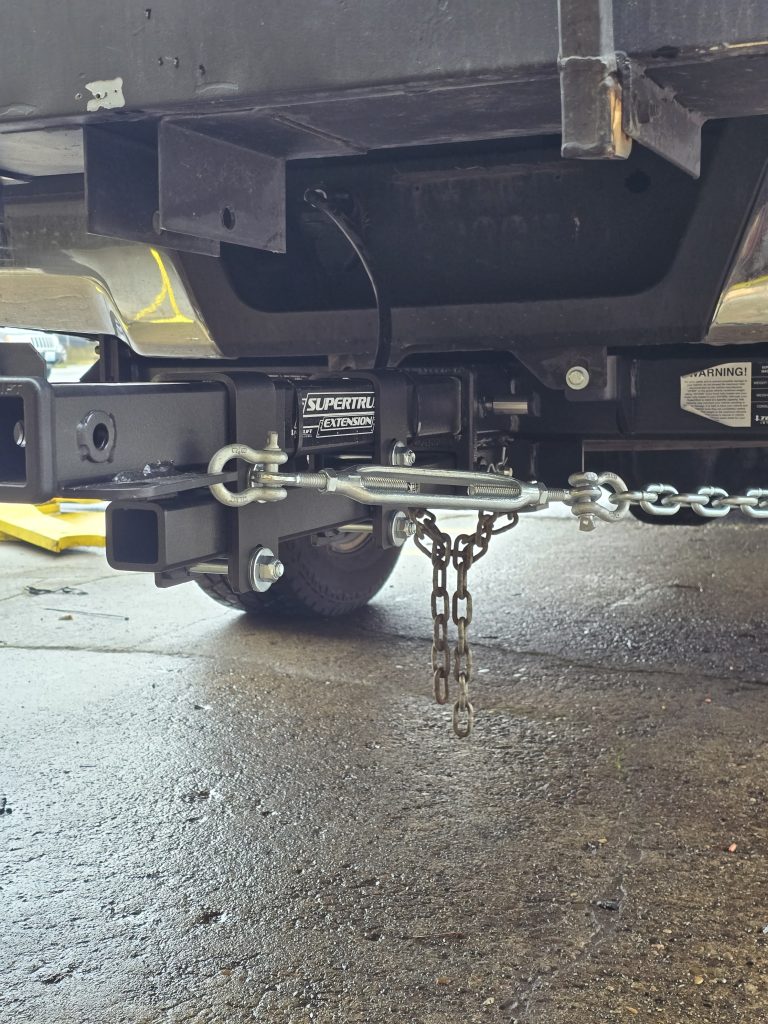

Next, use the provided eye-to-eye turnbuckles to secure a bow shackle on both sides. These connect the hitch side plate to the end of your SuperTruss extension, creating a complete structural link.
Tightening and Tensioning
Start by tightening the eye-to-eye turnbuckles by hand. Once hand-tight, use a wrench to tighten the jam nuts to the proper torque specifications outlined in your instruction booklet.
An important safety check: make sure your chains don't have any slack when using your extension. Proper tension is critical for safe operation.
Optional Plug Bracket Installation
If you plan on using a plug bracket with your SuperTruss extension, refer to the instruction booklet for proper installation procedures specific to that component.
Final Checks Before Towing
Once all components are installed and properly tightened, your SuperTruss extension is ready for use. Before you begin towing, always refer to your instruction booklet for all tongue weight and towing capacity specifications to ensure you're operating within safe limits.
Frequently Asked Questions
Do I need a reducer sleeve for my SuperTruss extension?
You only need a reducer sleeve if you have the SuperHitch Magnum. Standard SuperHitch models do not require this component.
How many U-bolts should I use on my extension?
The exact quantity and placement of U-bolts varies by extension length. Consult your specific product documentation for the correct configuration.
How tight should the turnbuckles be?
Tighten the eye-to-eye turnbuckles by hand first, then tighten the jam nuts with a wrench to the proper torque specifications listed in your instruction booklet.
Should there be slack in the chains?
No. Make sure your chains don't have slack when using your extension. Proper tension ensures safe operation.
Where can I find towing capacity information?
All tongue weight and towing capacity specifications are listed in the instruction booklet that came with your SuperTruss extension. Always consult this documentation before towing.
What if I want to install a plug bracket?
Refer to the instruction booklet for proper plug bracket installation procedures, as this is an optional component with specific installation requirements.
