Assembling your Torklift FastGun turnbuckle is straightforward when you follow the proper sequence. This guide walks you through each step to ensure your FastGun is ready to secure your camper with confidence.

What You'll Need

Before starting assembly, gather these components:

  • FastGun body
  • Threaded hook rod
  • Square nut
  • Rubber washer
  • Locking nut
  • Indicator washer
  • FastGun cap
  • Pin

Step-by-Step Assembly Process

Step 1: Insert the Threaded Rod

Open the handle on the FastGun body and insert the threaded rod into the assembly.

Step 2: Attach the Square Nut

Take your square nut and add it to the assembly. Hold the square nut at the end of the threaded rod and twist the threaded rod clockwise to secure it in place.

Step 3: Add the Rubber Washer

Place the rubber washer onto the threaded rod. Use the same technique as with the square nut, holding the washer while twisting the threaded rod clockwise.

Step 4: Install the Locking Nut

Add the locking nut to the assembly. To make this easier, clamp down on the nut with the handle and twist the threaded rod. When properly tightened, you should be able to see one to two threads on the outside of the locking nut.

Step 5: Secure the Cap and Pin

Add your FastGun cap, then insert the pin to lock everything in place.

Step 6: Attach the Indicator Washer

Add the indicator washer to the threaded rod. This component plays a critical role in ensuring proper tension.

Understanding the Indicator Washer

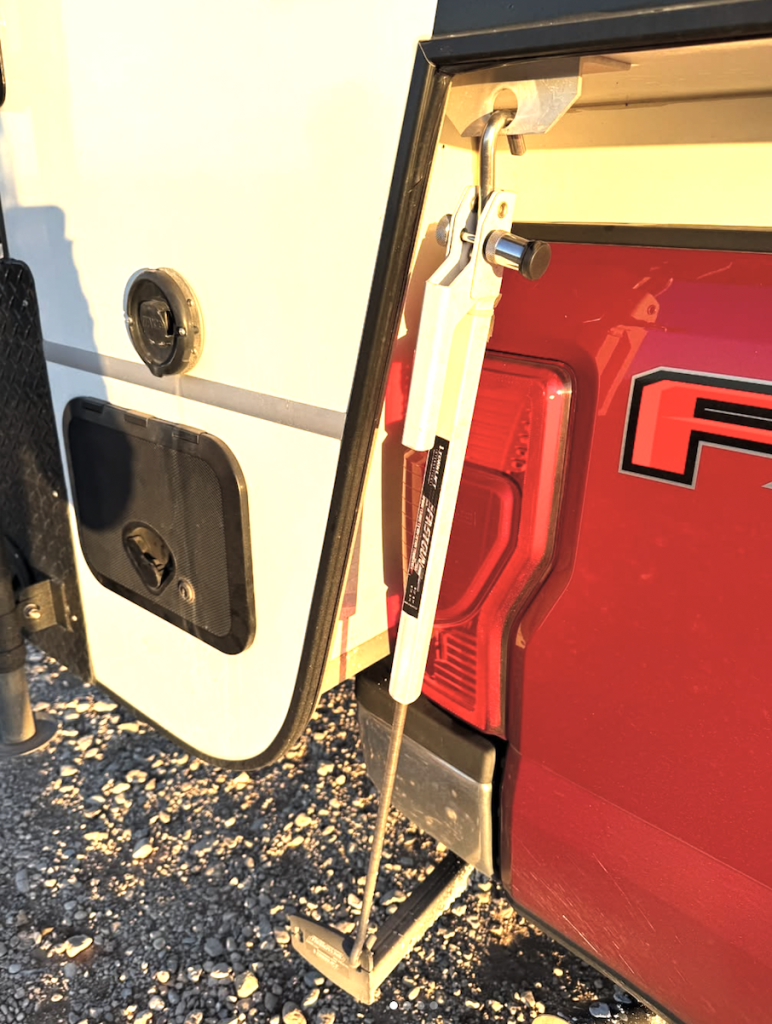

The indicator washer serves as your visual confirmation of proper tension. When you attach your FastGun to your camper and clamp down on the handle, the indicator washer should move a quarter of an inch. This movement signifies 300 pounds of pull down pressure, ensuring your camper is properly secured. It is critical that your spring-loaded turnbuckles are always properly tensioned to 300 pounds. This will ensure safe handling of your truck camper and protect your camper anchor points from damage.

Adjusting the Length

Once assembled, your threaded rod will slide up and down to adjust the length as needed. Simply twist the rod to make length adjustments for your specific setup.

FAQ

What components come with the FastGun turnbuckle?

The FastGun includes the body, threaded hook rod, square nut, rubber washer, locking nut, indicator washer, cap, and pin.

How do I know if my locking nut is properly tightened?

When correctly tightened, you should see one to two threads visible on the outside of the locking nut.

What does the indicator washer do?

The indicator washer provides visual confirmation of proper tension. It should move a quarter of an inch when you clamp down the handle, indicating 300 pounds of pull down pressure.

Can I adjust the length after assembly?

Yes. The threaded rod slides up and down and can be adjusted by twisting it to achieve the length you need.

Where can I get help if I have questions?

Visit torklift.com or call 800-246-8132 for assistance with your FastGun assembly or any other questions.
