Upgrading to the GlowStep Revolution Uprising is a straightforward process that starts with taking accurate measurements of your RV's entry area. With just a few simple measurements, you can determine if this premium step system is the right fit for your recreational vehicle.
What You'll Need to Measure
The measurement process is simple and requires only a few key dimensions to ensure proper fitment.
Primary Measurements

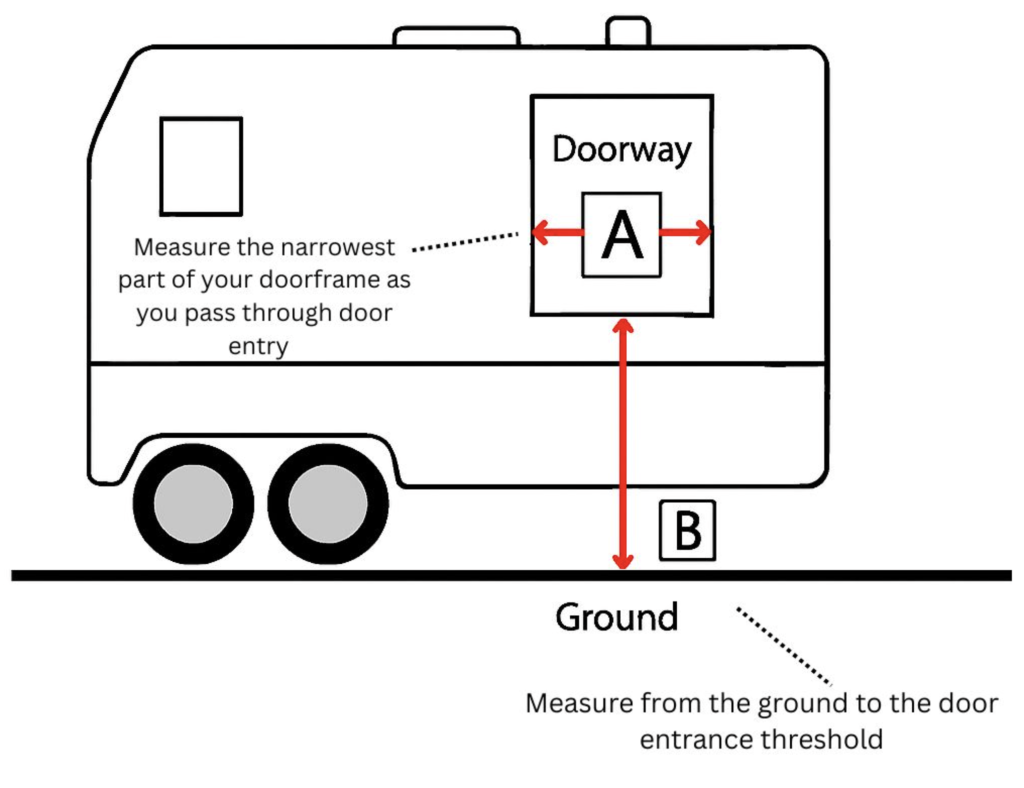

Width Between Factory Door Flanges
The first measurement you'll need is the width between the factory door flanges. These are the inch tabs located in between the door frame. This measurement ensures the GlowStep Revolution Uprising will fit properly within your RV's door opening.
Height from Ground to Door Sill Plate
Next, measure the height from the ground to the door sill plate. This critical measurement determines the overall step configuration needed for comfortable entry and exit from your RV.
Additional Requirements
Beyond the basic measurements, there are specific dimensional requirements your RV must meet for proper installation.
Door Sill Plate Height
Your door sill plate height needs to be between 5/8 and 3/4 of an inch. This specification ensures the step system can mount securely to your RV's structure.
Dorsal Height Clearance
You'll need a minimum clearance of 3/8 of an inch of dorsal height. This clearance is essential for proper operation and fitment of the GlowStep Revolution Uprising.
Quick Measurement Checklist
- Width between factory door flanges
- Height from ground to door sill plate
- Door sill plate height (must be between 5/8" and 3/4")
- Dorsal height clearance (minimum 3/8")
Need Assistance?
If you have questions about measuring for your GlowStep Revolution Uprising or need help determining compatibility with your RV, Torklift is here to help.
Contact Information:
- Website: torklift.com
- Phone: 800-246-8132
Frequently Asked Questions
How many measurements do I need to take for the GlowStep Revolution Uprising?
You need a few key measurements: the width between factory door flanges, the height from ground to door sill plate, and verification that your door sill plate height is between 5/8 and 3/4 of an inch with a minimum dorsal height clearance of 3/8 of an inch.
What are the factory door flanges?
The factory door flanges are the inch tabs located in between the door frame of your RV. You'll measure the width between these flanges to determine proper fitment.
What is the required door sill plate height?
The door sill plate height needs to be between 5/8 and 3/4 of an inch for the GlowStep Revolution Uprising to fit properly.
What is the minimum dorsal height clearance needed?
You need a minimum clearance of 3/8 of an inch of dorsal height for proper installation and operation.
Where can I get help if I have questions about my measurements?
You can visit torklift.com or call 800-246-8132 for assistance with measuring or any questions about the GlowStep Revolution Uprising.
