Installation Disclaimer: This blog is intended as a general reference only. It may not include every step, tool, torque specification, or vehicle-specific detail needed for your installation. Always refer to the official installation instructions included with your product for the complete procedure, required tools, torque values, safety information, and fitment details.

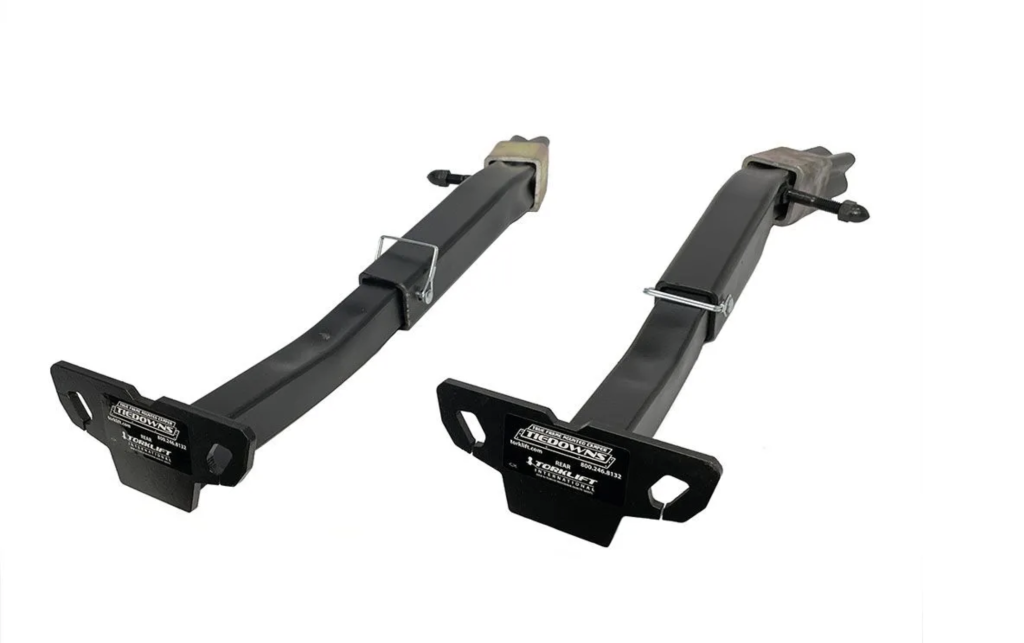

Why Choose Torklift F3001 Frame-Mounted Tie Downs
The Torklift F3001 frame-mounted camper tie downs are engineered specifically for Ford trucks and represent the strongest mounting option available for slide-in campers. These tie downs bolt directly to your truck's frame, providing unmatched stability and security for your camper.
Built with quality in mind, these tie-downs are proudly made in the USA and come with a lifetime warranty. The premium Armor Pro finish ensures they're built to withstand the elements and last for years of reliable service.
Installation Process
Passenger Side Installation
Begin your installation with the passenger side tie down assembly.
Step 1: Prepare the Receiver
Remove the acorn nut from the threads to prepare the components for assembly.
Step 2: Insert the Receiver
Slide the crimped end of the receiver into the cross tube. Pay careful attention to orientation: the welded-on bolt must face the rear of the truck. This positioning is critical for proper installation.
Step 3: Attach the Retainer Bracket
Slide the retainer bracket onto the welded bolt. Secure the bracket using the 1/2-inch lock washer and acorn nut.
Driver Side Installation
Repeat the same process to install the driver side tie-down. Follow the identical steps to ensure both tie-downs are properly mounted and symmetrical.
Using Your Tie Downs
Once installation is complete, using your tie-downs is straightforward. When you're ready to secure your camper, slide the insert into the receiver and secure it with the provided 1/4-inch pin.
Important Reminders
This guide serves as an overview reference for the installation process. Always refer to the official Torklift instructions when installing these products, as they are updated regularly to reflect the most current installation procedures and specifications.
Frequently Asked Questions
What makes the F3001 tie-downs the strongest mounting option?
The F3001 tie downs bolt directly to your truck's frame, creating the most secure connection possible for a slide-in camper.
Are these tie-downs compatible with all Ford trucks?
These tie downs are designed for Ford trucks up to 2004. However, tie down fitments are specific based off of year, make, and model so make sure to use Torklift’s Find Your Fit to identify the correct part numbers for your set up.
What warranty comes with these tie downs?
Torklift F3001 tie downs come with a lifetime warranty.
Are these tie downs protected against rust and corrosion?
Yes, the tie downs feature a premium Armor Pro finish that protects them from the elements.
Where can I get help if I have questions during installation?
Visit the Torklift website or call 800-246-8132 for assistance with any questions.
What size pin is used to secure the insert?
The tie-downs use a 1/4-inch pin to secure the insert into the receiver.
