Cargo Anchor Reinforcement for Toyota Tacoma - T5304G

Toyota Tacoma composite beds create a unique challenge for truck camper owners. The factory cargo anchor points do not have a published weight rating for truck camper tie-down use, which leaves owners needing a stronger solution at the front of the bed.

The Cargo Anchor Reinforcement for Toyota Tacoma solves that problem by reinforcing the front cargo anchor area with a heavy-duty, frame-mounted anchor system that helps you make use of your truck’s available payload with greater confidence. Designed specifically for 2024-2026 Toyota Tacoma 5' bed trucks, this front-only system is intended for truck campers with anchor points that mount in the bed and should be used in conjunction with the Rear ApexAnchors system.

This reinforcement kit installs in the front bed corner and creates a stronger anchor solution at the factory cargo anchor location while still preserving the factory anchor point for smaller, temporary loads. The result is a cleaner, stronger, more stable front tie-down connection without drilling into your truck.

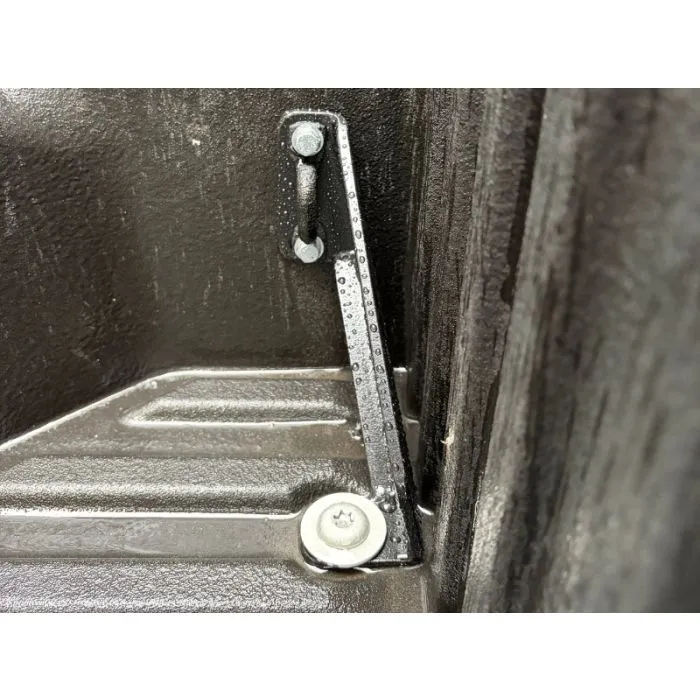

The reinforced bracket sits tight to the front corner of the bed, and the angled support keeps the system compact while visually reinforcing the load path from the anchor area down to the mounting point.

Key features

• Front cargo anchor reinforcement: Reinforces the front cargo anchor area on 2024-2026 Toyota Tacoma 5’ bed trucks for truck camper applications with anchor points that mount in the bed.

• Frame-mounted strength and stability: Mounts to the truck frame for maximum strength and a more stable front tie-down connection.

• Use with Rear ApexAnchors system: Completes the front portion of the setup when paired with the Rear ApexAnchors system.

• Stainless steel construction: Made from rust-free stainless steel for long-term corrosion resistance and durability.

• No-drill installation: Installs easily with no drilling required, helping preserve the truck bed and simplify installation.

• Maintains factory anchor usability: Reinforces a new heavy duty cargo anchor point in place of the factory location while still allowing the factory anchor point to be used for smaller, temporary loads.

• Made for Tacoma composite beds: Addresses the limitation of factory cargo anchor points on composite beds, which do not carry a published weight rating for truck camper tie-down use.

• Heavy-duty low-profile design: Creates a strong front anchor solution while keeping the reinforcement tucked tight into the bed corner.

• Made in the USA: Designed and manufactured in the USA for dependable quality and fit.

• Lifetime warranty: Backed by Torklift’s lifetime warranty for long-term confidence.

Spring-loaded Turnbuckles Required

For this system, spring-loaded turnbuckles are not just recommended, they are a critical part of protecting both your truck and your camper. As you drive, the truck and camper are constantly moving, flexing, and reacting to bumps, corners, and road vibration, so the tie-down connection needs to be able to absorb that movement without transferring sudden shock loads into the anchor points. Torklift’s tie-down guidance recommends spring-loaded turnbuckles because they help manage that dynamic movement and maintain the correct preload, with 300 lbs being the target setting for proper performance. Ratchet straps are not suitable for this kind of application because they cannot maintain consistent tension at all times. They tend to loosen as things shift, or they can be over-tightened, and either situation can put unnecessary stress on the truck bed and camper anchor points
