Torklift ApexAnchors Front In Bed Frame-Mounted Payload Anchors for Ford F150 — F5001

Why the Factory Anchor Points in Your Truck Bed Are Not Engineered for a Truck Camper

The cargo tie-down rings installed by the manufacturer are designed for light, temporary loads. They are typically unrated for weight, and they attach to the truck bed floor, not the frame. The truck bed is composed of thin aluminum, steel, or composite material. It is not engineered to sustain the prolonged, dynamic forces that a loaded truck camper generates in motion.

A truck camper is not a static load. On every road surface, including pavement, gravel, washboard, off-camber, it applies constantly shifting forces in multiple directions simultaneously. Anchoring that load to the bed floor rather than the structural frame concentrates stress on components that were never designed for it. Over time, that stress manifests as progressive damage to the bed, the camper's anchor points, and the connection between them.

ApexAnchors solve this at the source. They bolt directly to the truck's structural frame (the strongest part of the vehicle) and bring those anchor points up through the bed floor to where they are needed. The load path is direct. The structure is correct. The engineering is complete.

In Bed Frame-Mounted Payload Anchor Features:

• Frame-Mounted Load Path: The ApexAnchors bolt directly to the truck frame, not to the bed floor, bed rails, or any secondary structure. By routing the load directly into the frame, ApexAnchors distribute the forces of a loaded camper through the strongest structural members of the truck. This is the fundamental engineering principle that separates ApexAnchors from any bed-mounted anchoring solution.

• 2,000 lbs Per Anchor Point: Each anchor point is independently rated for 2,000 lbs, a specification that reflects the real dynamic forces generated by a loaded truck camper in motion, not the theoretical static loads that light-duty cargo anchors are loosely designed around. When all four anchor points in the complete system are engaged with properly tensioned spring-loaded turnbuckles, the camper and truck function as a single, coupled vehicle.

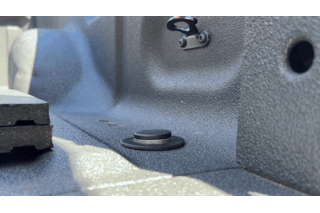

• Retractable Flush-Mount Design: When the camper is not loaded, the ApexAnchors points retract flush with the surface of the truck bed. The bed returns to a clean, uncluttered, back-to-stock appearance. No permanent protrusions. No hardware to remove. No compromises to the daily utility of the truck bed.

• Preserved Ground Clearance: Because the anchor points are mounted internally and retract into the bed floor, the vehicle's original ground clearance is completely unchanged. For off-road use, including overlanding, forest service roads, backcountry access.

• Eliminates Camper Shift: Camper shift is the unintentional lateral and longitudinal movement of a loaded camper during transit and is a direct consequence of insufficient anchoring. When a camper is anchored to unrated bed-mounted hardware with connections that can lose tension or stretch out, the camper moves. That movement damages the truck bed, damages the camper's structure, and compromises the handling and stability of the combined vehicle.

• Tailor-Made Vehicle Fitment: The ApexAnchors are not a universal adapter. They are engineered to the specific frame geometry, mounting locations, and bed dimensions of the specific truck. Every bracket angle, bolt pattern, and access hole location is designed for this application. The result is a bolt-on installation with no fabrication, no shimming, and no improvisation required.

• Compatible with Leading Truck Camper Brands: The ApexAnchors are designed for truck campers that route their tie down connections inside the truck bed, including Cirrus, Four Wheel Campers, Travel Lite, Scout, and other brands using inboard anchor configurations. Not sure if your camper qualifies? Call our technical team at 800-246-8132.

• Simple, Bolt-On Installation: Installation requires drilling an access hole through the truck bed floor to reach the frame mounting location. No drilling into the frame. No welding. No permanent modification to the structural members of the truck. Complete installation instructions and a torque specification chart are included with every kit.

• Aligned with Truck Manufacturer Guidance: Truck manufacturers generally recommend that significant loads be transferred to the truck frame rather than supported by the bed alone. ApexAnchors are engineered in direct alignment with that guidance.

• Made in the USA: Designed, engineered, and manufactured at Torklift International's facility in Washington State.

• Legendary Lifetime Warranty: Every set of ApexAnchors is backed by Torklift's Legendary Lifetime Warranty, a warranty that reflects the confidence we have in the engineering and materials that go into every product that leaves our facility.

Inboard Vs. Outboard Comparison

Is ApexAnchors the Right System for Your Setup?

ApexAnchors (inboard) are designed for truck campers whose tie down straps connect inside the truck bed. If your camper uses external anchor points that connect outside the bed, Torklift's Outboard Frame-Mounted Tie Downs are the correct solution.
